The vibratory roller test: what it tells you about a paver's strength and durability
Every supplier can show you a compressive strength result. Far fewer are willing to drive a vibratory roller over the pavement they have just laid. I think that second test tells you much more.
A test report tells you how a handful of sample blocks behaved in a laboratory press. That matters, and we test batch by batch on every job. But nobody drives a container trailer over a laboratory. What a port or a depot actually needs to know is how the whole pavement behaves: thousands of blocks, the sand bed under them, the joints between them and the edges holding them in.
That is what a vibratory roller shows you.
What the roller actually does
A vibratory roller is a heavy steel drum that shakes as it rolls. Run over a laid paver surface, it loads every block, the bedding and the joints at the same time, again and again. It is a harsh treatment, and that is the point. Weak blocks crack. Poorly bedded areas dip. Joints that were only half filled let blocks rock and chip at the edges. Problems that would take a season of traffic to appear show up in minutes.
What makes a pavement stand up to it
The block itself. Strength and density come from the mix and the machine. On a vibro hydraulic press the concrete is compacted by vibration and pressure, which keeps the water-cement ratio under control and gives a dense block with no honeycombing. At Dhamra the blocks were M-50 unipavers to BS 6717; at Jalna Dry Port they were M-55, 120 mm, to IS 15658.
Uniform size. Blocks that vary in thickness sit at different heights on the bed, and the roller finds the high ones first. Machine-made blocks come out the same, block after block.
The bed and the base. Most pavement failures start underneath. A properly prepared base and an even sand bed let every block carry its share of the load.
Fully packed joints. This is the one most often rushed. Jointing sand has to be spread and brushed in until the joints are full. That is what makes an interlocking pavement actually interlock, so that a load on one block is shared by its neighbours.
Edge restraints. Kerbs and edges hold the whole field of blocks together. Without them the pavement slowly spreads at the edges under traffic.
What we have seen

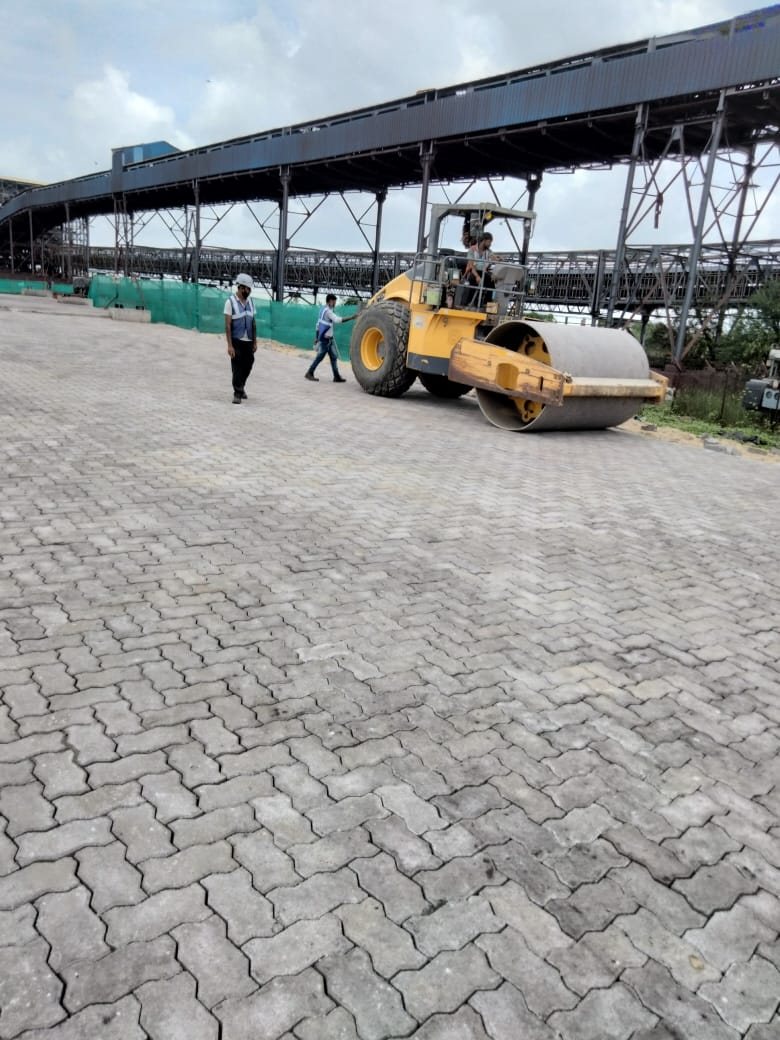

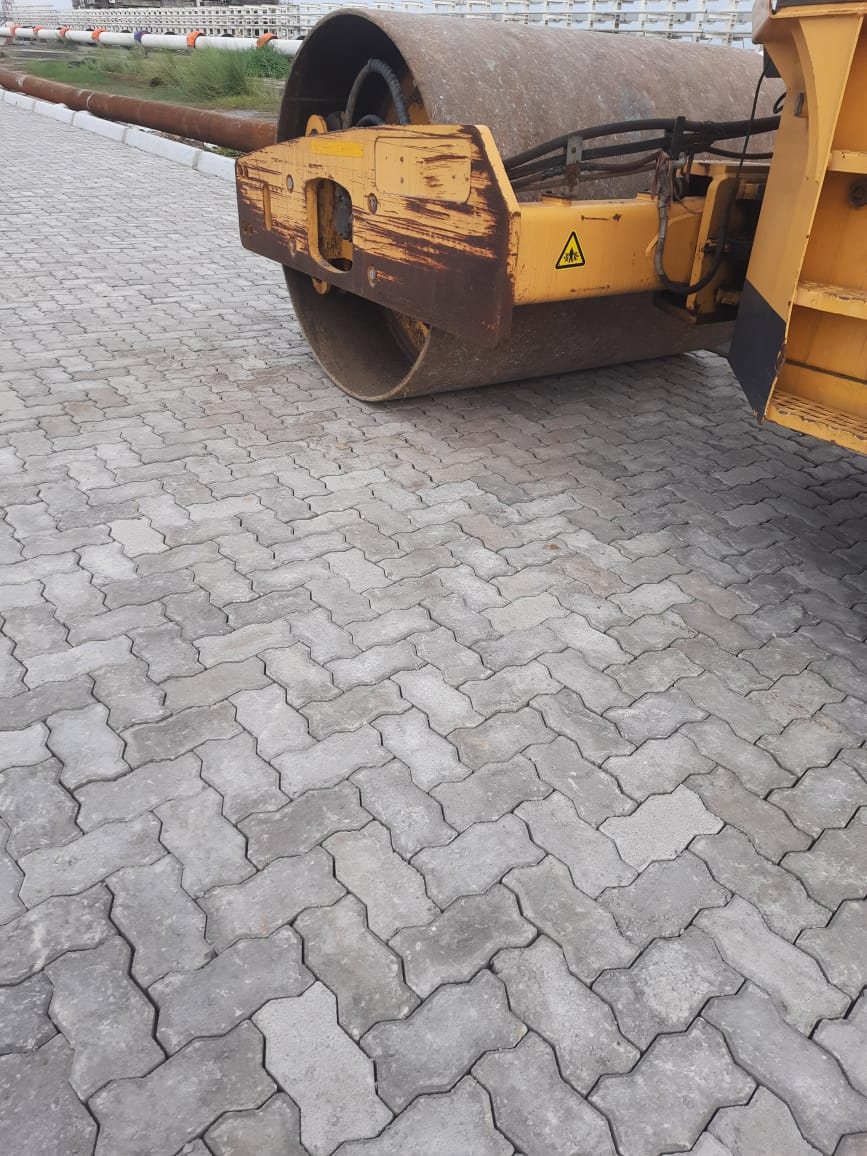

At Jalna Dry Port, the finished M-55, 120 mm unipaver pavement was put through the vibratory roller test and came through without cracking. At Dhamra Port, the laid M-50 unipaver pavement went through the same test on the internal roads and in the steel stackyard, the areas that take the heaviest loads on that site, and it too came through without cracking. The photos on this page are from that test.
Why it matters for durability
A pavement that survives a vibratory roller on day one has shown you that its blocks are strong, its bed is sound and its joints are full. Those are the same three things that decide whether it will still be level after years of trucks, trailers and handling equipment. And if the ground underneath ever does need attention, a paver pavement can be lifted and re-laid with the same blocks, which a slab cannot.
A word of caution
The roller test is meant for high-grade, heavy-duty pavements like the ones at Jalna and Dhamra. It is not a fair benchmark for lower grades laid on footpaths or light-traffic areas, and nobody should present it as one. If you are building a heavy-duty pavement, though, it is worth asking your supplier a simple question: will you put a roller on it? Ask us.
