IS 5758
Precast Kerb Stone Manufacturer for Road Projects

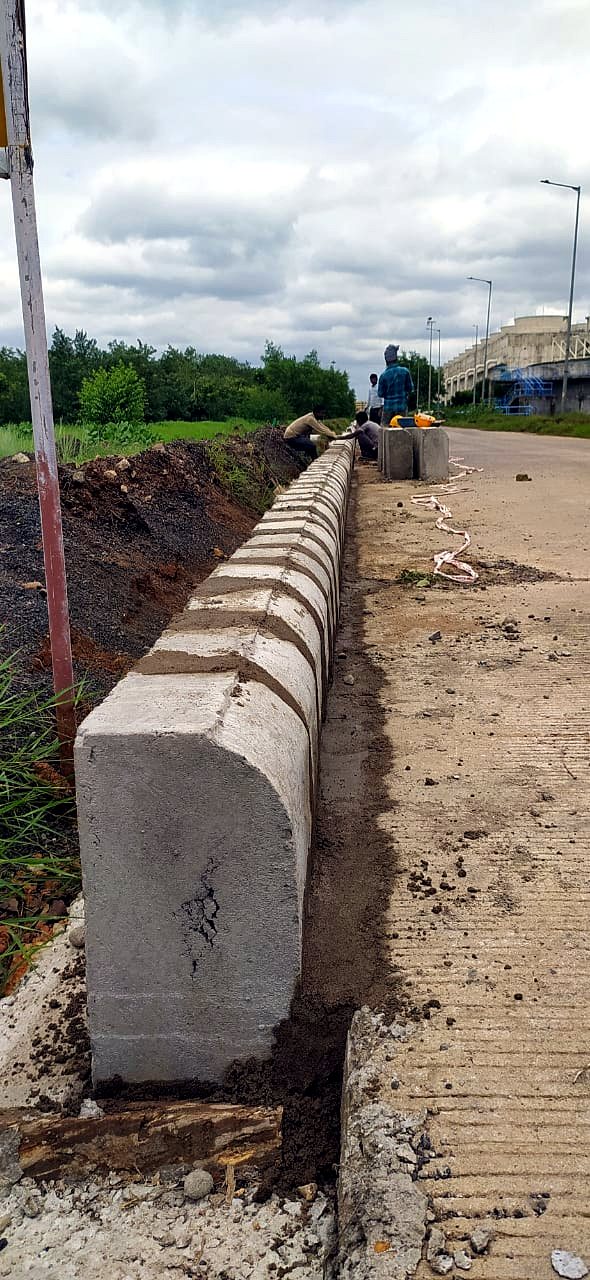

Precast concrete kerbs are the edge units laid along roads and medians. They separate the carriageway from footpaths, guide traffic and hold the pavement edge firmly in place. Machine-cast kerbs give straight lines, sharp edges and the same strength in every piece.
- Straight, curved & mountable profiles
- Cast to MORTH / project drawings — heavy blocks up to 500 × 300 × 250 mm vibro-pressed
- Supplied only, or fixed with line & level by our teams
Specifications
Specifications — as per IS 5758
- Standard
- IS 5758 — Precast Concrete Kerbs, Channels, Edging & Quadrants
- Types
- Straight & curved kerbs, channels, edging and quadrants; barrier & mountable profiles
- Sizes
- Standard road sizes, or cast to your project drawing — heavy duty blocks of 500 × 300 × 250 mm (~110 kg) have been produced onsite
- Concrete grade
- As specified for the project — typically M30 and above
- Manufacturing
- Vibro-pressed on our automatic plant for fixed shape, density and smooth finish
- Finish
- Fair-faced with chamfered edges; pigmented options available
Exact grades, sizes and finishes are confirmed against your project specification.
Applications
Where it is used
Highways & expresswaysUrban roads & mediansFootpath edgingTownships & smart city worksParking areas & drainage channels
Suitable for onsite manufacturing — heavy kerb blocks are cast at site, saving transport of ~110 kg units.
