MORTH · IRC:SP:102
RE Wall Block Manufacturer for Flyover Approaches

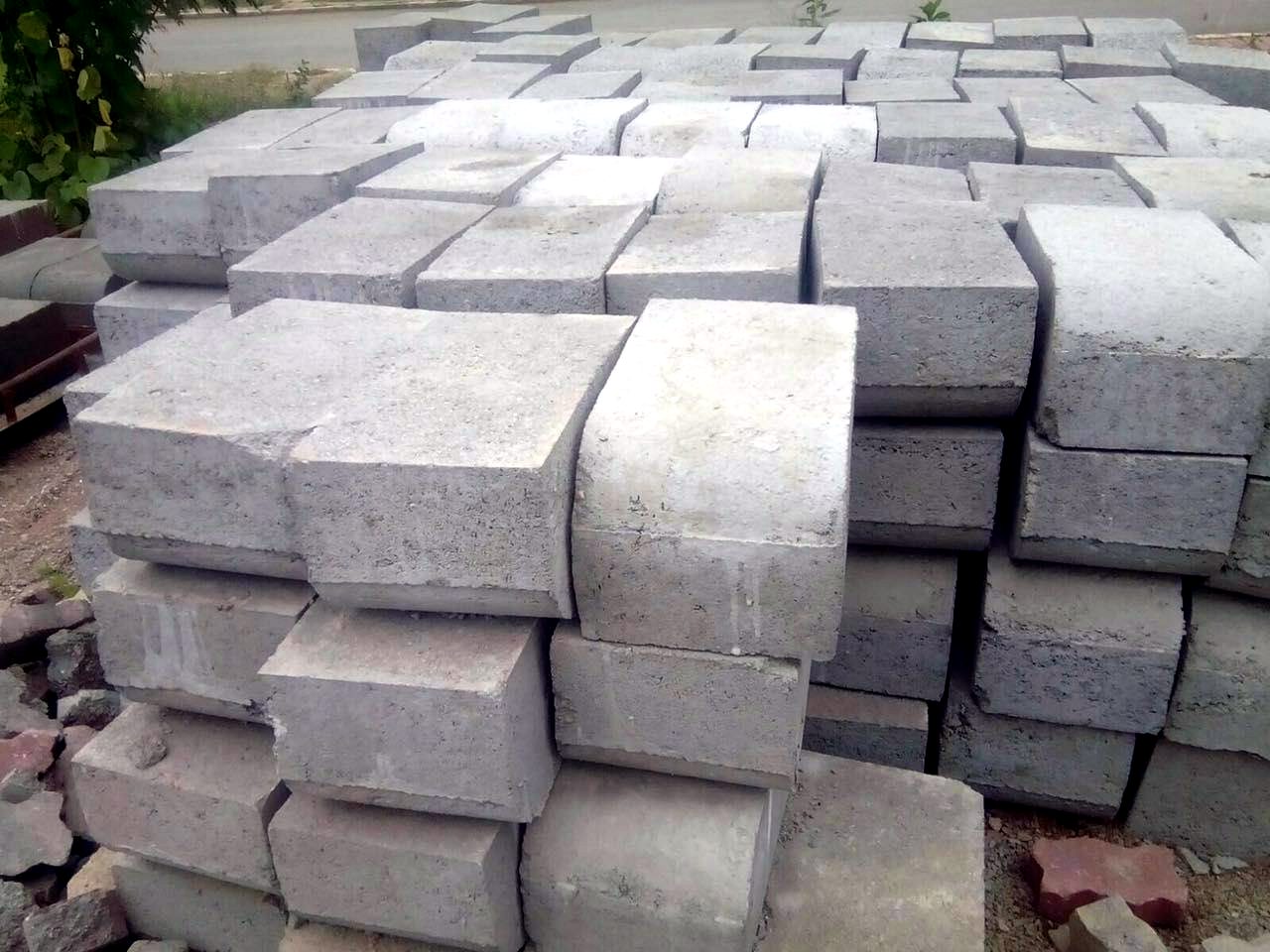

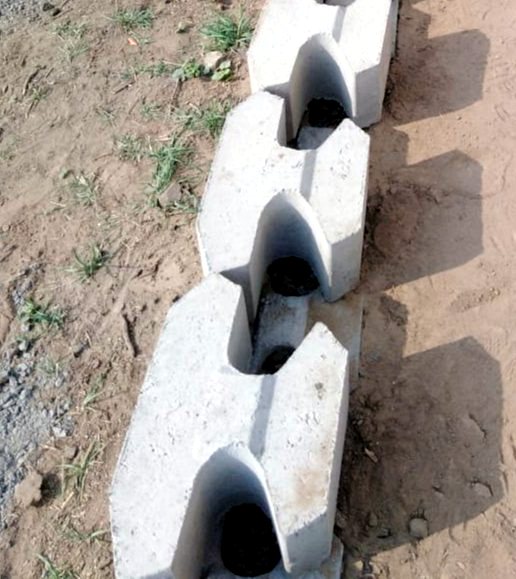

RE (reinforced earth) wall blocks form the concrete face of reinforced-soil walls at flyover approaches and embankments. Each block is cast in steel moulds to the project drawing, so the units sit flush and the finished wall face looks clean and uniform.
- Cast to project drawings & tolerances
- Batch-wise cube testing & full records
- Produced onsite, right next to your structure
Specifications
Specifications — MORTH & IRC:SP:102
- Reference standards
- MORTH specifications & IRC:SP:102; concrete as per IS 456
- Concrete grade
- As per project design — typically M35
- Block size
- 457 mm × 302 mm × 203 mm (L × D × H) — or as per client drawing / requirement, cast in steel moulds
- Quality
- Batch-wise cube testing with full records for client inspection
- Finish
- Fair-faced, uniform blocks with accurate joints
- Production
- Onsite casting yard set up beside your structure for large quantities
Exact grades, sizes and finishes are confirmed against your project specification.
Applications
Where it is used
Flyover & ROB approachesRetaining wallsEmbankmentsGrade separatorsBridge approaches
Onsite casting is the natural fit for RE wall work — blocks are produced right beside the structure that needs them.
